A8L2.2-4200, Dual-Axis Quasi-static MEMS Mirror

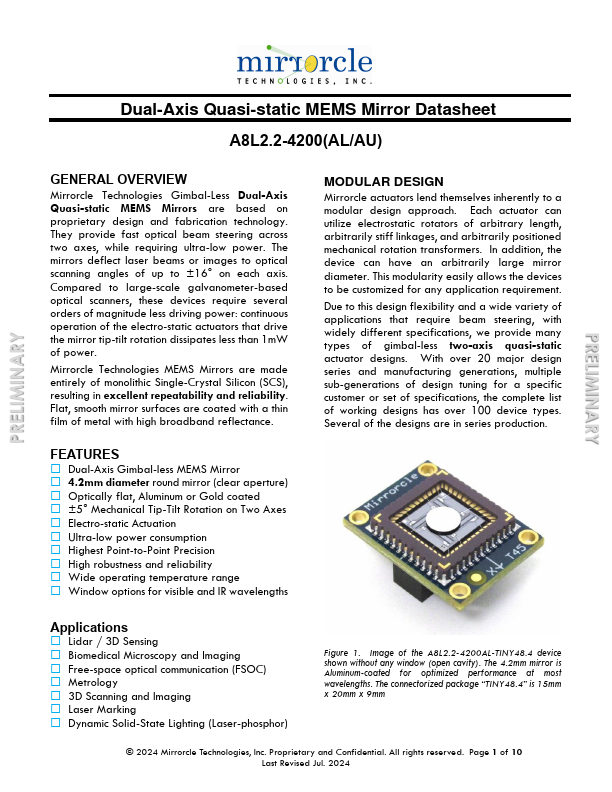

Dual-Axis Quasi-static MEMS Mirror Datasheet A8L2.2-4200(AL/AU) PRELIMINARY PRELIMINARY GENERAL OVERVIEW Mirrorcle Technologies Gimbal-Less Dual-Axis Quasi-static MEMS Mirrors are based on proprietary design and fabrication technology.

They provide fast optical beam steering across two axes, while requiring ultra-low power.

The mirrors deflect laser beams or images to optical scanning angles of up to ±16° on each axis.

Compared to large-scale galvanometer-based optical scanners, these devices

A8L2.2-4200 Features

*  Dual-Axis Gimbal-less MEMS Mirror  4.2mm diameter round mirror (clear aperture)  Optically flat, Aluminum or Gold coated  ±5° Mechanical Tip-Tilt Rotation on Two Axes  Electro-static Actuation  Ultra-low power consumption  Highest Point-to-Point Precision  High robustness and reliability 
