TO-0812LN, TO-0812LN_Mini Plug-In Low Noise Amplifier 800 to 1200 MHz

Mini-Circuits

TO-0812LN Description

Plug-In Low Noise Amplifier 800 to 1200 MHz Maximum Ratings Operating Temperature Storage Temperature -54°C to 85°C -55°C to 100°C ! NEW TO-0812LN .

TO-0812LN Applications

* military Electrical Specifications MODEL NO. FREQ. (MHz) NF
* (dB) GAIN (dB) MAXIMUM POWER INTERCEPT POINT (dBm) (dBm) Output (1 dB Comp. ) Typ. +8 Input (no damage) +10 IP3 Typ. +22.5 VSWR (:1) Max. In 2.5 Out 2.5 DC POWER Volt Current (V) (mA) 15 70 fL-fU TO-0812LN 800-1200 Max. 1

📥 Download Datasheet

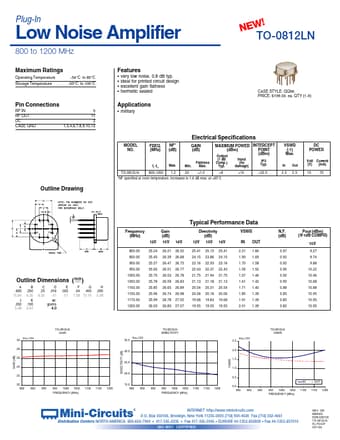

TO-0812LN Datasheet Preview — This datasheet PDF includes multiple part numbers: TO-0812LN, TO-0812LN_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: TO-0812LN, TO-0812LN_Mini
Manufacturer: Mini-Circuits
File Size: 69.14 KB
Datasheet: TO-0812LN_Mini-Circuits.pdf
Description: Plug-In Low Noise Amplifier 800 to 1200 MHz
Note: This datasheet PDF includes multiple part numbers: TO-0812LN, TO-0812LN_Mini.
Please refer to the document for exact specifications by model.
