SYM-30DLHW, SYM-30DLHW_Mini, Level 10 (LO Power +10dBm) 5 to 3000 MHz

www.DataSheet4U.com Surface Mount Frequency Mixer Level 10 (LO Power +10dBm) .

SYM-30DLHW_Mini-Circuits.pdf

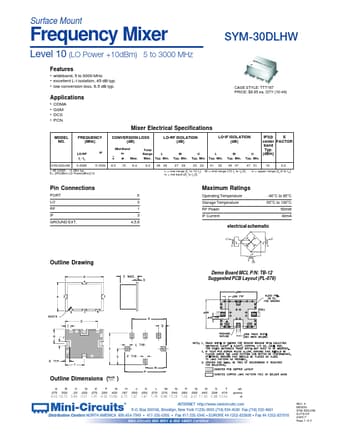

SYM-30DLHW Datasheet Preview — This datasheet PDF includes multiple part numbers: SYM-30DLHW, SYM-30DLHW_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYM-30DLHW, SYM-30DLHW_Mini

Manufacturer:

Mini-Circuits

File Size:

234.22 KB

Description:

Level 10 (LO Power +10dBm) 5 to 3000 MHz

Note:

This datasheet PDF includes multiple part numbers: SYM-30DLHW, SYM-30DLHW_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 5 to 3000 MHz
* excellent L-I isolation, 45 dB typ.

Applications

* CDMA GSM DCS PCN Mixer Electrical Specifications MODEL NO. FREQUENCY (MHz) LO/RF fL- fU SYM-30DLHW 5-3000 IF CONVERSION LOSS (dB) _ x Mid-Band m σ .15 Max. 8.4 LO-RF ISOLATION (dB) M Typ. Min. 27 29 LO-IF ISOLATION (dB) M Typ. Min. 45 37 U Typ. Min. 47 31
