SWM-2-50DR, SWM-2-50DR_Mini, High Isolation Switches SPDT DC to 4.5 GHz

High Isolation Switches SPDT, DC to 4.5 GHz .

SWM-2-50DR_Mini-Circuits.pdf

SWM-2-50DR Datasheet Preview — This datasheet PDF includes multiple part numbers: SWM-2-50DR, SWM-2-50DR_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SWM-2-50DR, SWM-2-50DR_Mini

Manufacturer:

Mini-Circuits

File Size:

186.10 KB

Description:

High Isolation Switches SPDT DC to 4.5 GHz

Note:

This datasheet PDF includes multiple part numbers: SWM-2-50DR, SWM-2-50DR_Mini.
Please refer to the document for exact specifications by model.

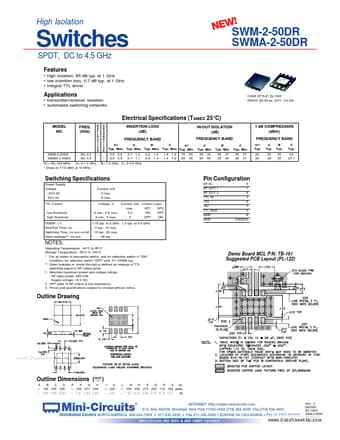

Features

* high isolation, 65 dB typ. at 1 GHz
* low insertion loss, 0.7 dB typ. at 1 GHz

Applications

* transmitter/receiver isolation
* automated switching networks CASE STYLE: DL1020 PRICE: $5.30 ea. QTY. (10-49) Electrical Specifications (TAMB= 25°C) MODEL NO. FREQ. (GHz) R E F L E C T I V E A B S O R P T I V E INSERTION LOSS (dB) FREQUENCY BAND IN-OUT ISOLATION (dB) FREQUENCY
