QMC-1050, QMC-1050_Mini QPSK Modulator

QMC-1050 Description

Plug-In QPSK Modulator 50Ω Maximum Ratings Operating Temperature Storage Temperature Input power Control current QMC-1050 800 to 1050 MHz -55°C to .

QMC-1050 Features

* hermetically sealed metal case

QMC-1050 Applications

* communications systems
* cellular
* military, hi-rel applications CASE STYLE: C07 PRICE: $ 124.45 ea. QTY (1-9) Pin Connections RF IN RF OUT CONTROL-1 CONTROL-2 ISOLATE (DO NOT USE) GROUND CASE GROUND 13 2 4 1 9,12,16 3,5,6,7,8,10,11,14,15 3,5,6,7,8,10,11,14,15 Modulator

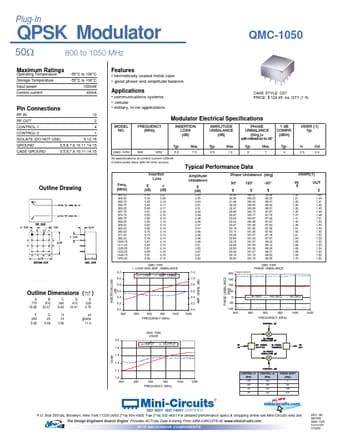

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: QMC-1050, QMC-1050_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
QMC-1050, QMC-1050_Mini
Manufacturer
Mini-Circuits
File Size
131.24 KB
Datasheet
QMC-1050_Mini-Circuits.pdf
Description
QPSK Modulator
Note
This datasheet PDF includes multiple part numbers: QMC-1050, QMC-1050_Mini.
Please refer to the document for exact specifications by model.
