QCC-22 - Power Splitter/Combiner 2 Way-90 50 1500 to 2500 MHz

This page provides the datasheet information for the QCC-22, a member of the QCC-22_Mini Power Splitter/Combiner 2 Way-90 50 1500 to 2500 MHz family.

Features

low insertion loss, 0.4 dB typ. high isolation, 28 dB typ. LTCC construction excellent temperature stability small size, 0.15"X0.15" patent pending PCS defense space radar blue tooth WLAN FREQ. RANGE (MHz) fL-fU 1500-2500 1500-1700 1700-2200 2200-2500.
derate linearly to 3.5W at 100°C ambient. CASE STYLE: GF981 PRICE: $ 4.95 ea. QTY (10-49) Pin Connections SUM PORT PORT.

Mini-Circuits

📥 Download Datasheet

Datasheet Details

Part number	QCC-22
Manufacturer	Mini-Circuits
File Size	110.61 KB
Description	Power Splitter/Combiner 2 Way-90 50 1500 to 2500 MHz
Datasheet	QCC-22 Datasheet

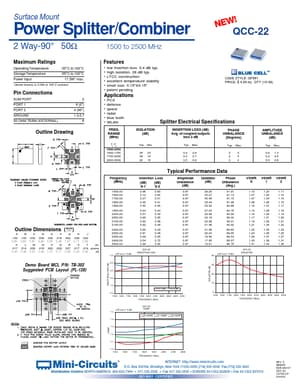

Additional preview pages of the QCC-22 datasheet.

📁 Similar Datasheet

Other Datasheets by Mini-Circuits

QCC-20 - Surface Mount Power Splitter/Combiner 2 Way-90 50 1200 to 2200 MHz

Full PDF Text Transcription

Click to expand full text

Surface Mount Power Splitter/Combiner 2 Way-90° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input -55°C to 100°C -55°C to 100°C 17.5W* max. ! NEW QCC-22 1500 to 2500 MHz Features • • • • • • • • • • • • low insertion loss, 0.4 dB typ. high isolation, 28 dB typ. LTCC construction excellent temperature stability small size, 0.15"X0.15" patent pending PCS defense space radar blue tooth WLAN FREQ. RANGE (MHz) fL-fU 1500-2500 1500-1700 1700-2200 2200-2500 *derate linearly to 3.5W at 100°C ambient. CASE STYLE: GF981 PRICE: $ 4.95 ea. QTY (10-49) Pin Connections SUM PORT PORT 1 PORT 2 GROUND 50 OHM TERM (EXTERNAL) 2 8 (0°) 4 (90°) 1,3,5,7 6 Applications Splitter Electrical Specifications ISOLATION (dB) INSERTION LOSS (dB) Avg. of coupled outputs less 3 dB Typ.
