NHP-100+, NHP-100_Mini High Pass Filter

Mini-Circuits

Description

www.DataSheet.co.kr Coaxial High Pass Filter 50Ω 90 to 2000 MHz .

📥 Download Datasheet

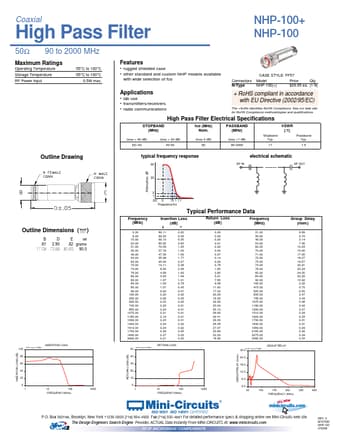

NHP-100+ Datasheet Preview — This datasheet PDF includes multiple part numbers: NHP-100+, NHP-100_Mini. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NHP-100+, NHP-100_Mini
Manufacturer: Mini-Circuits
File Size: 137.13 KB
Datasheet: NHP-100_Mini-Circuits.pdf
Description: High Pass Filter
Note: This datasheet PDF includes multiple part numbers: NHP-100+, NHP-100_Mini.
Please refer to the document for exact specifications by model.

Features

* -55°C to 100°C -55°C to 100°C 0.5W max. NHP-100+ NHP-100 Maximum Ratings Operating Temperature Storage Temperature RF Power Input
* rugged shielded case
* other standard and custom NHP models available with wide selection of fco Connectors N-Type CASE STYLE: FF57 Model Price Qty

Applications

* lab use
* transmitters/receivers
* radio communications + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Sufﬁx identiﬁes RoHS Compliance. See our web site for RoHS Compliance methodologies and qualiﬁcations. High Pass Filter Electrical Speciﬁcations STOP
