MNA-2W+

The MNA-2W+ is Monolithic Amplifier designed by Mini-Circuits.

Product Overview

Mini-Circuits

Datasheet Details

Part number	MNA-2W+, MNA-2W+-Mini
Manufacturer	Mini-Circuits
File Size	422.40 KB
Description	Monolithic Amplifier
Datasheet	MNA-2W+-Mini-Circuits.pdf
Note	This datasheet PDF includes multiple part numbers: MNA-2W+, MNA-2W+-Mini. Please refer to the document for exact specifications by model.

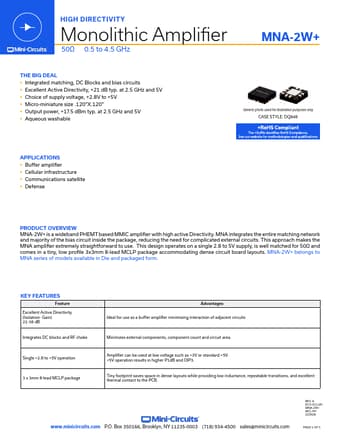

Additional preview pages of the MNA-2W+ datasheet.

Product details

Description

DUT ESD Protection Diodes ESD Protection Diodes Function RF-IN RF-OUT DC NC GND OPTIONAL Pad Number 2 5 7,8 1,3,4,6 Paddle 1,6 Description (See Fig 1) RF input pin RF output pin DC Bias pads 7,8. Pad 7 connected to ground via 1000 pF.Pad 8 connected to pad 7 via 33.2 ohms.Not Connected, connect pad 3 and 4 to ground externally Ground No internal connection; recommended use: per PCB Layout PL-078 www.minicircuits.com P.O.Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircui

Features

Feature Excellent Active Directivity (Isolation- Gain) 21-36 dB Integrates DC blocks and RF choke Single +2.8 to +5V operation 3 x 3mm 8-lead MCLP package Advantages Ideal for use as a buffer amplifier minimizing interaction of adjacent circuits Minimizes external components, component count and circuit area. Amplifier can be used at low voltage such as +3V or standard +5V. +5V operation results in higher P1dB and OIP3. Tiny footprint saves space in dense layouts while providing low inductance,.
