LAT-2, LAT-2_Mini - Miniature Surface Mount Fixed Attenuator

LAT-2 Description

www.DataSheet4U.com Miniature Surface Mount Fixed Attenuator 50Ω 0.5W 2dB -55°C to 85°C -55°C to 100°C LAT-2+ LAT-2 DC to 2500 MHz .
4 of ea.

LAT-2 Features

* wideband, DC to 2500 MHz
* excellent VSWR, through entire band
* miniature size, SOT143 package
* aqueous washable CASE STYLE: MMM168 PRICE: $1.95 ea. QTY (10-49) Maximum Ratings Operating Temperature Storage Temperature Pin Connections INPUT OUTPUT GROUND 4 2 1,3

LAT-2 Applications

* cellular
* PCS
* ISM

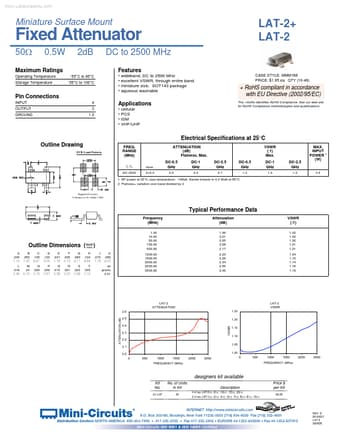

* VHF/UHF Electrical Specifications at 25°C Outline Drawing PCB Land Pattern FREQ. RANGE (MHz) fL
* fU DC-2500 Nom. 2±0.3 ATTENUATION (dB) Flatness, Max. DC-0.5 GHz 0.3 VSWR (:1) Max. DC-2.5 GHz 0.7 DC-1 GHz 0.4 DC-0.5 GHz 1.2 DC-1 G
