CBL-20FT-SMSM+, CBL-20FT-SMSM_Mini - Test Cable

Mini-Circuits

📥 Download Datasheet

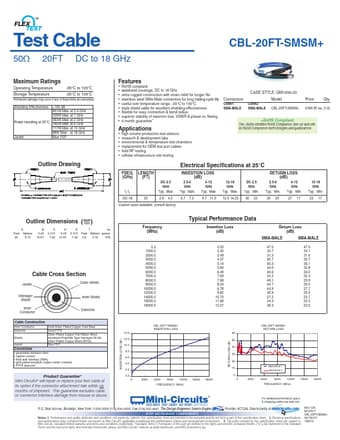

CBL-20FT-SMSM+ Datasheet Preview — This datasheet PDF includes multiple part numbers: CBL-20FT-SMSM+, CBL-20FT-SMSM_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CBL-20FT-SMSM+, CBL-20FT-SMSM_Mini
Manufacturer	Mini-Circuits
File Size	378.82 KB
Description	Test Cable
Datasheet	CBL-20FT-SMSM_Mini-Circuits.pdf
Note	This datasheet PDF includes multiple part numbers: CBL-20FT-SMSM+, CBL-20FT-SMSM_Mini. Please refer to the document for exact specifications by model.

CBL-20FT-SMSM+ Product details

Features

-55°C to 105°C -55°C to 105°C.
RoHS compliant.
wideband coverage, DC to 18 GHz.
extra rugged construction with strain relief for longer life.
stainless steel SMA-Male connectors for long mating-cycle life.
useful over temperature range, -55°C to 105°C.
triple shield cable for excellent shielding effectiveness.
flexible for easy connection & bend radius.
superior stability of insertion loss, VSWR & phase vs. flexing.
