BAT-30+, BAT-30+-Mini Fixed Attenuator

BAT-30+ Description

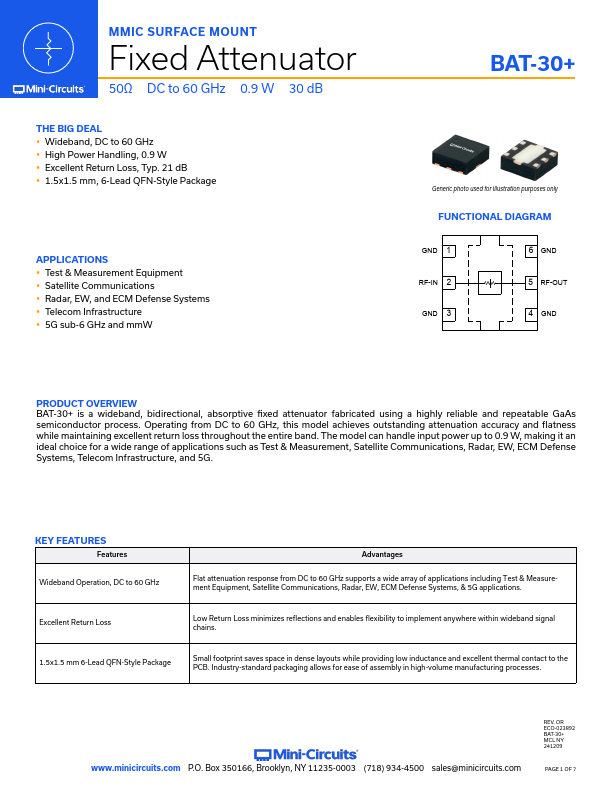

MMIC SURFACE MOUNT Fixed Attenuator 50Ω DC to 60 GHz 0.9 W 30 dB THE BIG DEAL y Wideband, DC to 60 GHz y High Power Handling, 0.9 W y Excellent Return.

BAT-30+ Applications

* y Test & Measurement Equipment y Satellite Communications y Radar, EW, and ECM Defense Systems y Telecom Infrastructure y 5G sub-6 GHz and mmW BAT-30+ Generic photo used for illustration purposes only FUNCTIONAL DIAGRAM GND 1 RF-IN 2 GND 3 6 GND 5 RF-OUT 4 GND PRODUCT OVERVIEW BAT-30+ is a wide

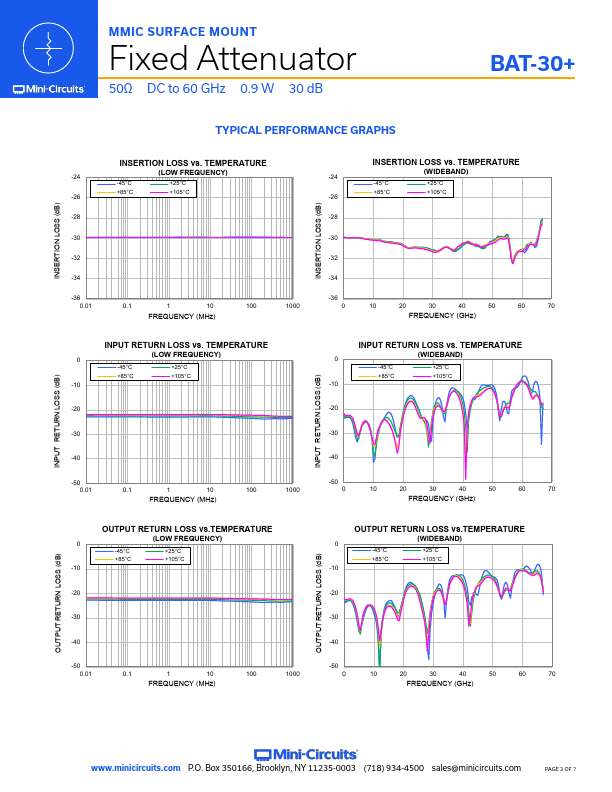

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT-30+, BAT-30+-Mini. Please refer to the document for exact specifications by model.
