XR1002-QB - GaAs Receiver

Mimix Broadband

The XR1002-QB by Mimix Broadband is a GaAs Receiver. Below is the official datasheet preview.

📥 Download Datasheet

XR1002-QB GaAs Receiver by Mimix Broadband - Datasheet Preview — Official preview page of the **XR1002-QB** GaAs Receiver datasheet (Mimix Broadband).

Datasheet Details

Part number	XR1002-QB
Manufacturer	Mimix Broadband
File Size	764.73 KB
Description	GaAs Receiver
Datasheet	XR1002-QB_MimixBroadband.pdf
Additional preview pages of the XR1002-QB datasheet.

XR1002-QB Product details

Description

Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (RF Pin) Storage Temperature (Tstg) Operating Temperature (Ta) Channel Temperature (Tch) +6.0 VDC 300 mA +0.3 VDC 0.0 dBm -65 to +165 OC -55 to MTTF Table3 MTTF Table 3 (1) Measured using constant current, 10dB attenuation and -20dBm total input power.(2) At minimum attenuation.(3) Channel temperature affects a device's MTTF.It is recommended to keep channel temperature as low as possible for

Features

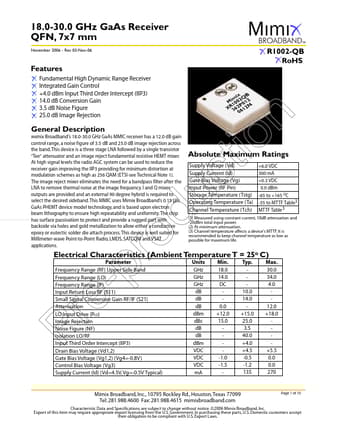

Fundamental High Dynamic Range Receiver Integrated Gain Control +4.0 dBm Input Third Order Intercept (IIP3) 14.0 dB Conversion Gain 3.5 dB Noise Figure 25.0 dB Image Rejection www. DataSheet4U. com Mimix Broadband’s 18.0-30.0 GHz GaAs MMIC receiver has a 12.0 dB gain control range, a noise figure of 3.5 dB and 25.0 dB image rejection across the band. This device is a three stage LNA followed by a single transistor "Tee" attenuator and an image reject fundamental resistive HEMT mixer. At high sig.
