DR-6

The DR-6 is SSPA Replacement Kits designed by Mimix Broadband.

Product Overview

Mimix Broadband

Datasheet Details

Part number	DR-6
Manufacturer	Mimix Broadband
File Size	195.67 KB
Description	SSPA Replacement Kits
Datasheet	DR-6_MimixBroadband.pdf

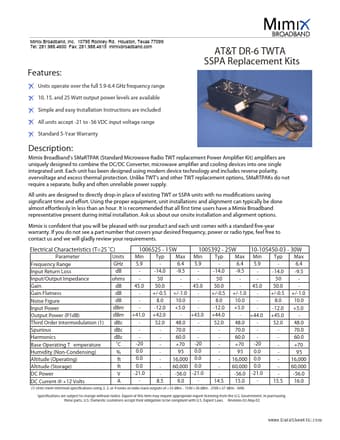

Additional preview pages of the DR-6 datasheet.

Product details

Description

Mimix Broadband’s SMaRTPAK (Standard Microwave Radio TWT replacement Power Amplifier Kit) amplifiers are uniquely designed to combine the DC/DC Converter, microwave amplifier and cooling devices into one single integrated unit.

Features

Units operate over the full 5.9-6.4 GHz frequency range 10, 15, and 25 Watt output power levels are available Simple and easy Installation Instructions are included All units accept -21 to -56 VDC input voltage range Standard 5-Y ear Warranty.
