SCK108 - NTC THERMISTORS - SCK 20 Series

Download the SCK108 datasheet PDF (SCK-2R512 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ntc thermistors - sck 20 series.

Features

  • q NTC Surge Protectors limit the current at switch on, particularly useful for high capacative/inductive loads. 1.2 Order code SCK __ Zero Power Resistance _ Steady State Current Part No. SCK-2R512 SCK-0510 SCK-0512 SCK-108 Zero Power Resistance at 25°C (W) 2.5 5 5 10 Max. Steady (25°C Ambient) State Current Approx. at 25°C Resistance (A) ( W) 12 0.060 10 0.082 12 0.066 8 0.122 Thermal Dissipation Constant (mw/°C) 29 29 29 29 Thermal time Constant (Sec. ) 104 123 124 119 Operating Tem.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SCK-2R512_Microtherm.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SCK108
Manufacturer Microtherm
File Size 161.99 KB
Description NTC THERMISTORS - SCK 20 Series
Datasheet download datasheet SCK108 Datasheet

📁 Similar Datasheet

Other Datasheets by Microtherm

Full PDF Text Transcription

Click to expand full text

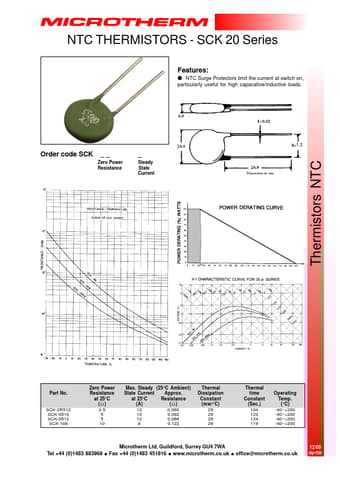

www.DataSheet.co.kr NTC THERMISTORS - SCK 20 Series Features: q NTC Surge Protectors limit the current at switch on, particularly useful for high capacative/inductive loads. 1.2 Order code SCK __ Zero Power Resistance _ Steady State Current Part No. SCK-2R512 SCK-0510 SCK-0512 SCK-108 Zero Power Resistance at 25°C (W) 2.5 5 5 10 Max. Steady (25°C Ambient) State Current Approx. at 25°C Resistance (A) ( W) 12 0.060 10 0.082 12 0.066 8 0.122 Thermal Dissipation Constant (mw/°C) 29 29 29 29 Thermal time Constant (Sec.) 104 123 124 119 Operating Temp. (°C) -40~+200 -40~+200 -40~+200 -40~+200 Tel +44 (0)1483 883969 q Microtherm Ltd, Guildford, Surrey GU4 7WA Fax +44 (0)1483 451816 q www.microtherm.co.uk 12/00 q office@microtherm.co.
