LS2805S, LS2801R5S - DC-DC CONVERTER

Micross

Datasheet Details

Part number	LS2805S, LS2801R5S
Manufacturer	Micross
File Size	1.63 MB
Description	DC-DC CONVERTER
Datasheet	LS2801R5S-Micross.pdf
Note	This datasheet PDF includes multiple part numbers: LS2805S, LS2801R5S. Please refer to the document for exact specifications by model.

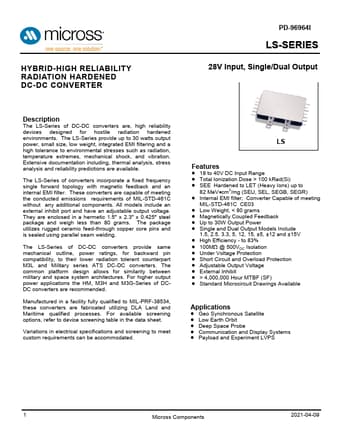

The LS-Series of DC-DC converters are, high reliability devices designed for hostile radiation hardened environments.

18 to 40V DC Input Range.
Total Ionization Dose > 100 kRad(Si).
SEE Hardened to LET (Heavy Ions) up to 82 MeV.
cm2/mg (SEU, SEL, SEGB, SEGR).
Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03.
Low Weight, < 80 grams.
Magnetically Coupled Feedback.
Up to 30W Output Power.
Single and Dual Output Models Include 1.5, 2.5, 3.3, 5, 12, 15, ±5, ±12 and ±15V.
High Efficiency - to 83%.
100M @ 500VDC Isolation.
Under Voltage Pro.
