1N4942

The 1N4942 is Fast Recovery Rectifier Diodes designed by Micross.

Product Overview

Micross

Datasheet Details

Part number	1N4942
Manufacturer	Micross
File Size	150.16 KB
Description	Fast Recovery Rectifier Diodes
Datasheet	1N4942-Micross.pdf

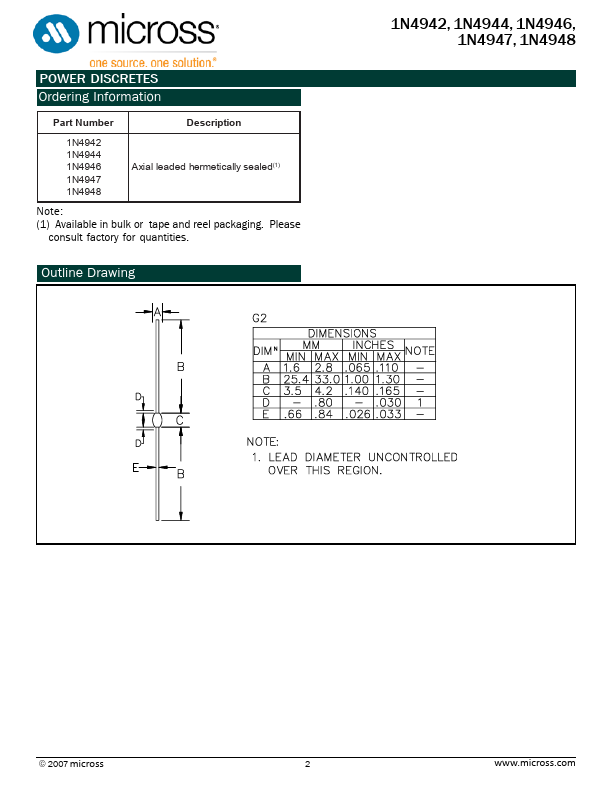

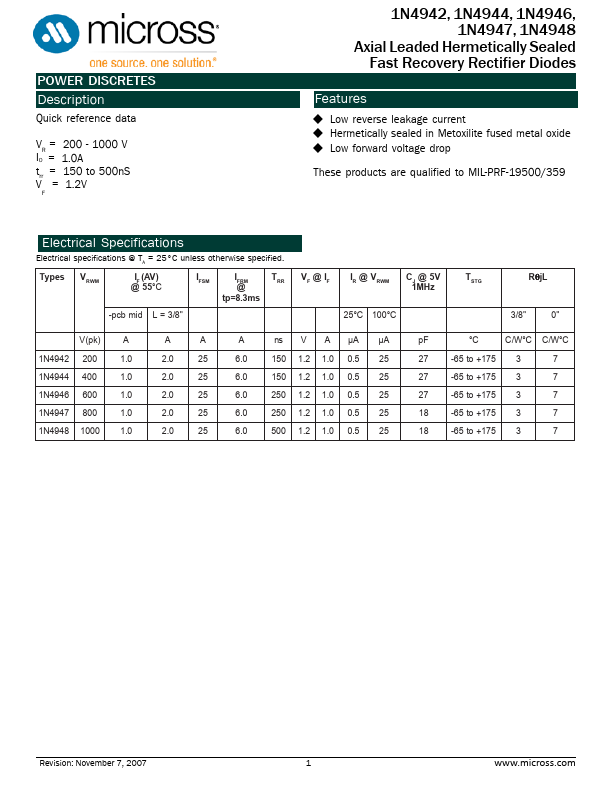

Additional preview pages of the 1N4942 datasheet.

Product details

Description

Quick reference data VR = 200 - 1000 V IO = 1.0A trr = 150 to 500nS V = 1.2V F 1N4942, 1N4944, 1N4946, 1N4947, 1N4948 Axial Leaded Hermetically Sealed Fast Recovery Rectifier Diodes

Features

Low reverse leakage current Hermetically sealed in Metoxilite fused metal oxide Low forward voltage drop These products are qualified to MIL-PRF-19500/359 Electrical Specifications Electrical specifications @ TA = 25°C unless otherwise specified. Types VRWM @IF (AV) 55°C IFSM I@FRM TRR tp=8.3ms VF @ IF IR @ VRWM C1J M@H5zV TSTG -pcb mid L = 3/8" 25°C 100°C RθjL 3/8" 0" V(pk) A 1N4942 200 1.0 1N4944 400 1.0 1N4946 600 1.0 1N4947 800 1.0 1N4948 1000 1.0 A A 2.
