SMBJ36 - Transient Voltage Suppressor

Product Overview

Microsemi

Datasheet Details

Part number	SMBJ36
Manufacturer	Microsemi
File Size	115.41 KB
Description	Transient Voltage Suppressor
Datasheet	SMBJ36 Datasheet
Note	This datasheet PDF includes multiple part numbers: SMBJ36, SMBJ50. Please refer to the document for exact specifications by model.

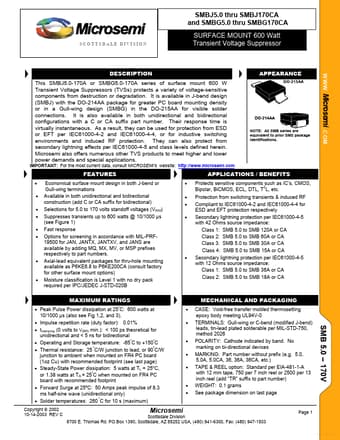

Additional preview pages of the SMBJ36 datasheet.

Product details

Description

This SMBJ5.0-170A or SMBG5.0-170A series of surface mount 600 W Transient Voltage Suppressors (TVSs) protects a variety of voltage-sensitive components from destruction or degradation.

Features

Economical surface mount design in both J-bend or Gull-wing terminations Available in both unidirectional and bidirectional construction (add C or CA suffix for bidirectional) Selections for 5.0 to 170 volts standoff voltages (VWM) Suppresses transients up to 600 watts @ 10/1000 µs (see Figure 1) Fast response Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MS.
