MXP6501-C - Light-Activated Opto Inverter IC with Logic Output and Adjustable Optical Threshold-chip

Microsemi

📥 Download Datasheet

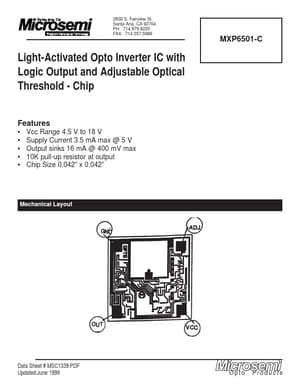

MXP6501-C Datasheet Preview — Preview of MXP6501-C PDF

Datasheet Details

Part number	MXP6501-C
Manufacturer	Microsemi ↗
File Size	37.36 KB
Description	Light-Activated Opto Inverter IC with Logic Output and Adjustable Optical Threshold-chip
Datasheet	MXP6501-C_MicrosemiCorporation.pdf

MXP6501-C Product details

Features

Vcc Range 4.5 V to 18 V Supply Current 3.5 mA max @ 5 V Output sinks 16 mA @ 400 mV max 10K pull-up resistor at output Chip Size 0.042” x 0.042” Mechanical Layout Data Sheet # MSC1339.PDF Updated:June 1999 Opto Products.
