MSMLJ12A - Surface Mount 3000 Watt Transient Voltage Suppressor

Download the MSMLJ12A datasheet PDF (MSMLG5.0A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount 3000 watt transient voltage suppressor.

Features

  • The following are key features of the MSMLG5.0A through MSMLG170CAe3 and the MSMLJ5.0A through MSMLJ170CAe3 devices: High-reliability devices with fabrication and assembly lot traceability for all M prefix devices All devices are 100% surge tested 3σ lot norm screening performed on standby current (ID) for all M prefix devices Available in both unidirectional and bidirectional versions Moisture classification is “Level 1” with no dry pack required per IPC/JEDEC J-STD-020B for all M prefix device.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSMLG5.0A-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MSM-0305 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0309 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0312 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0315 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0503 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0505 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0509 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0512 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-0515 - 1 WATT DC/DC CONVERTER (VOLGEN)
  • MSM-1205 - 1 WATT DC/DC CONVERTER (VOLGEN)
Other Datasheets by Microsemi
  • MSMLJ120A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ100A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ10A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ110A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ11A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ130A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ13A - Surface Mount 3000 Watt Transient Voltage Suppressor
  • MSMLJ14A - Surface Mount 3000 Watt Transient Voltage Suppressor

Full PDF Text Transcription

Click to expand full text

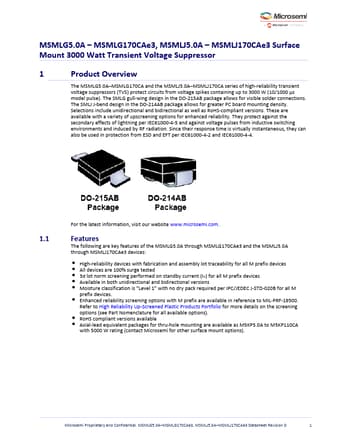

MSMLG5.0A – MSMLG170CAe3, MSMLJ5.0A – MSMLJ170CAe3 Surface Mount 3000 Watt Transient Voltage Suppressor 1 Product Overview The MSMLG5.0A–MSMLG170CA and the MSMLJ5.0A–MSMLJ170CA series of high-reliability transient voltage suppressors (TVS) protect circuits from voltage spikes containing up to 3000 W (10/1000 μs model pulse). The SMLG gull-wing design in the DO-215AB package allows for visible solder connections. The SMLJ J-bend design in the DO-214AB package allows for greater PC board mounting density. Selections include unidirectional and bidirectional as well as RoHS-compliant versions. These are available with a variety of upscreening options for enhanced reliability.
