M15KP260A - Transient Voltage Suppressor Protection Device

Download the M15KP260A datasheet PDF. This datasheet also covers the M15KP22A variant, as both devices belong to the same transient voltage suppressor protection device family and are provided as variant models within a single manufacturer datasheet.

Description

This Transient Voltage Suppressor series of M15KP22A

M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well.

RoHS compliant versions are also available.

Features

  • Available in both unidirectional and bidirectional configurations.
  • 3σ lot norm screening performed on standby current ID.
  • 100% surge tested devices.
  • Suppresses transients up to 15 kW @ 10/1000 µs and 100 kW @ 8/20 µs (see Figure 1).
  • Various screenings in reference to MIL-PRF-19500 are available. Refer to Hirel Non-Hermetic Product Portfolio for more details on the screening options. (See part nomenclature for all options. ).
  • High reliability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M15KP22A-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M1502NC200 Fast Recovery Diode IXYS
M1502NC220 Fast Recovery Diode IXYS
M1502NC240 Fast Recovery Diode IXYS
M1502NC250 Fast Recovery Diode IXYS
M1502ND200 Fast Recovery Diode IXYS

Other Datasheets by Microsemi (Microchip)

Part Number Description
M15KP26A Transient Voltage Suppressor Protection Device
M15KP200A Transient Voltage Suppressor Protection Device
M15KP220A Transient Voltage Suppressor Protection Device
M15KP22A Transient Voltage Suppressor Protection Device
M15KP240A Transient Voltage Suppressor Protection Device

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

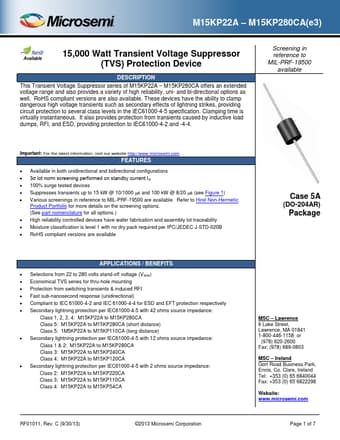

M15KP22A – M15KP280CA(e3) Available 15,000 Watt Transient Voltage Suppressor (TVS) Protection Device DESCRIPTION This Transient Voltage Suppressor series of M15KP22A – M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well. RoHS compliant versions are also available. These devices have the ability to clamp dangerous high voltage transients such as secondary effects of lightning strikes, providing circuit protection to several class levels in the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides protection from transients caused by inductive load dumps, RFI, and ESD, providing protection to IEC61000-4-2 and -4-4.
