Le87282 - G.Fast Dual Channel Line Driver

Microsemi

📥 Download Datasheet

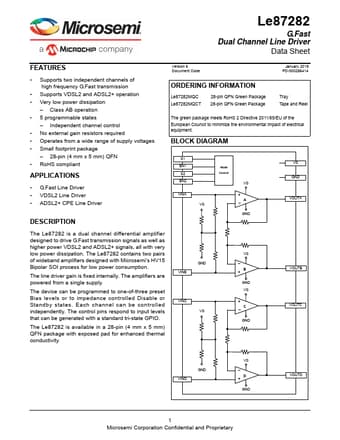

Le87282 Datasheet Preview — Preview of Le87282 PDF

Datasheet Details

Part number	Le87282
Manufacturer	Microsemi
File Size	222.62 KB
Description	G.Fast Dual Channel Line Driver
Datasheet	Le87282-Microsemi.pdf

Le87282 Product details

Description

Version 6 Document Code January 2019 PD-000286414 ORDERING INFORMATION Le87282MQC Le87282MQCT 28-pin QFN Green Package 28-pin QFN Green Package Tray Tape and Reel The green package meets RoHS 2 Directive 2011/65/EU of the European Council to minimize the environmental impact of electrical equipment.BLOCK DIAGRAM S1 EN1 S2 EN2 VINA VS Mode Control VS + A GND VS GND VOUTA The Le87282 is a dual channel differential amplifier designed to drive G.Fast transmission signals as wel

Features

Supports two independent channels of high frequency G. Fast transmission.
Supports VDSL2 and ADSL2+ operation.
Very low power dissipation.
Class AB operation.
5 programmable states.
Independent channel control.
No external gain resistors required.
Operates from a wide range of supply voltages.
Small footprint package.
28-pin (4 mm x 5 mm) QFN.
RoHS compliant.
