LX7104 - 1.4MHz 1.5A Asynchronous Buck Converter

Name: LX7104
SKU: LX7104-1525045

Microsemi

📥 Download Datasheet

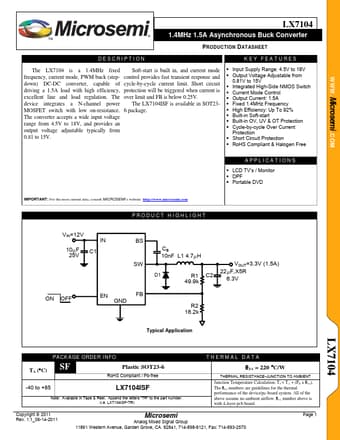

LX7104 Datasheet Preview — Preview of LX7104 PDF

Datasheet Details

Part number	LX7104
Manufacturer	Microsemi
File Size	225.86 KB
Description	1.4MHz 1.5A Asynchronous Buck Converter
Datasheet	LX7104-Microsemi.pdf

LX7104 Product details

Description

The LX7104 is a 1.4MHz fixed Soft-start is built in, and current mode frequency, current mode, PWM buck (step- control provides fast transient response and down) DC-DC converter, capable of cycle-by-cycle current limit.

Features

Input Supply Range: 4.5V to 18V.
Output Voltage Adjustable from 0.81V to 15V.
Integrated High-Side NMOS Switch.
Current Mode Control.
Output Current: 1.5A.
Fixed 1.4MHz Frequency.
High Efficiency: Up To 92%.
Built-in Soft-start.
Built-in OV, UV & OT Protection.
Cycle-by-cycle Over Current Protection.
Short Circuit Protection.
RoHS Compliant & Halogen Free.
