JANTX2N2060L - UNITIZED DUAL NPN SILICON TRANSISTOR

Download the JANTX2N2060L datasheet PDF. This datasheet also covers the JAN2N2060 variant, as both devices belong to the same unitized dual npn silicon transistor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JAN2N2060-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
JANTX2N2222A NPN SILICON SWITCHING TRANSISTOR Microsemi Corporation
JANTX2N2323 SCRs 1.6 Amp/ Planear Microsemi Corporation
JANTX2N2323AS SCRs 1.6 Amp/ Planear Microsemi Corporation
JANTX2N2323S SCRs 1.6 Amp/ Planear Microsemi Corporation
JANTX2N2324AS SCRs 1.6 Amp/ Planear Microsemi Corporation

Other Datasheets by Microsemi (Microchip)

Part Number Description
JANTX2N2060 UNITIZED DUAL NPN SILICON TRANSISTOR
JANTX2N2221A NPN SILICON SWITCHING TRANSISTOR
JANTX2N4856 N-CHANNEL J-FET
JANTX2N4857 N-CHANNEL J-FET
JANTX2N4858 N-CHANNEL J-FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

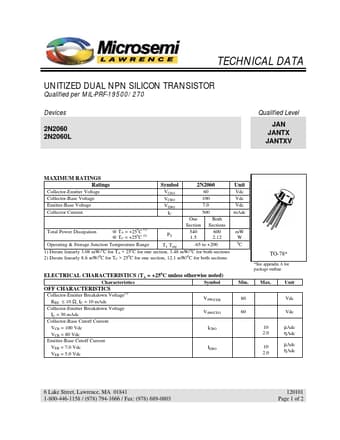

TECHNICAL DATA UNITIZED DUAL NPN SILICON TRANSISTOR Qualified per MIL-PRF-19500/270 Devices 2N2060 2N2060L Qualified Level JAN JANTX JANTXV MAXIMUM RATINGS Ratings Symbol 2N2060 Unit Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current VCEO VCBO VEBO IC 60 100 7.0 500 One Both Vdc Vdc Vdc mAdc Total Power Dissipation @ TA = +250C (1) @ TC = +250C (2) Section Sections PT 540 600 1.5 2.12 Operating & Storage Junction Temperature Range TJ, Tstg -65 to +200 1) Derate linearly 3.08 mW/0C for TA > 250C for one section, 3.48 mW/0C for both sections 2) Derate linearly 8.6 mW/0C for TC > 250C for one section, 12.
