HSMBJSAC18, HSMBJSAC5.0 500 WATT LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSOR

HSMBJSAC18 Description

WWW.Microsemi .COM SCOTTSDALE DIVISION HSMBJSAC5.0 thru HSMBJSAC50 500 WATT LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSOR .
The HSMBJSAC transient voltage suppressor (TVS) series rated at 500 Watts provides an added rectifier element as shown in Figure 4 to achieve low capa.

HSMBJSAC18 Features

* Unidirectional low-capacitance TVS series (for bidirectional see Figure 6)
* Suppresses transient up to 500 Watts Peak Pulse Power @ 10/1000 µs
* Improved performance in low capacitance of 30 pF
* Economical small plastic surface mount with robust axial subassembly

HSMBJSAC18 Applications

* for data or signal lines. The low capacitance rating of less than 30 pF may be used for protecting higher frequency applications in inductive switching environments or electrical systems involving secondary lightning effects per IEC61000-4-5 as well as RTCA/DO-160D or ARINC 429 for airborne avionics

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMBJSAC18, HSMBJSAC5.0. Please refer to the document for exact specifications by model.

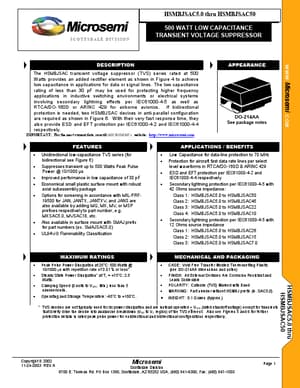

datasheet Preview Page 2 datasheet Preview Page 3
