DC35GN-15-D3 - 30 - 3500 MHz Broadband Transistor

DC35GN-15-D3 Description

DC35GN-15-D3 15 Watts * 50 Volts 30 - 3500 MHz Broadband Transistor GENERAL .
The DC35-15-D3 is an unmatched, COMMON SOURCE, class AB GaN on SiC HEMT transistor capable of providing over 18dB gain, 15 Watts of RF output power ac.

DC35GN-15-D3 Applications

* Housed in a 3x6mm Plastic DFN SMT package and offering small size and weight. ABSOLUTE MAXIMUM RATINGS Maximum Power Dissipation Device Dissipation @ 85C 20 W Maximum Voltage and Current Drain-Source Voltage (VDS) Gate-Source Voltage (VGS) 65 V -8 to -2 V Maximum Temperatures Storage Tempera

📥 Download Datasheet

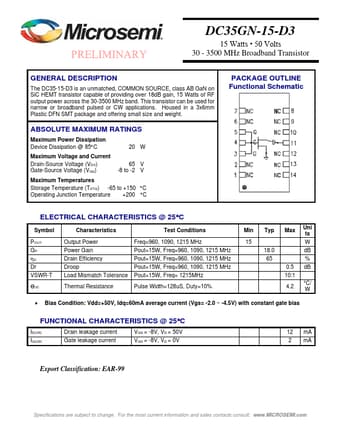

Preview of DC35GN-15-D3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
