CDLL4123-1 - 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes

Download the CDLL4123-1 datasheet PDF. This datasheet also covers the CDLL4614-1 variant, as both devices belong to the same 500mw metallurgically bonded glass surface mount zener diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The 1N4099UR-1 through 1N4135UR-1 and 1N4614UR-1 through 1N4627UR-1 series are 500 mW, Zener voltage regulators in the surface mount, glass DO-213AA package.

Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available.

Features

  • Surface mount equivalent to JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.
  • Internal metallurgical bond.
  • Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.
  • JAN, JANTX, JANTXV and JANS qualifications are av.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDLL4614-1-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CDLL4123 LEADLESS PACKAGE FOR SURFACE MOUNT Compensated Deuices Incorporated
CDLL4120 LEADLESS PACKAGE FOR SURFACE MOUNT Compensated Deuices Incorporated
CDLL4121 LEADLESS PACKAGE FOR SURFACE MOUNT Compensated Deuices Incorporated
CDLL4122 LEADLESS PACKAGE FOR SURFACE MOUNT Compensated Deuices Incorporated
CDLL4124 LEADLESS PACKAGE FOR SURFACE MOUNT Compensated Deuices Incorporated

Other Datasheets by Microsemi (Microchip)

Part Number Description
CDLL4120-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes
CDLL4121-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes
CDLL4122-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes
CDLL4124-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes
CDLL4125-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes

Full PDF Text Transcription

Click to expand full text

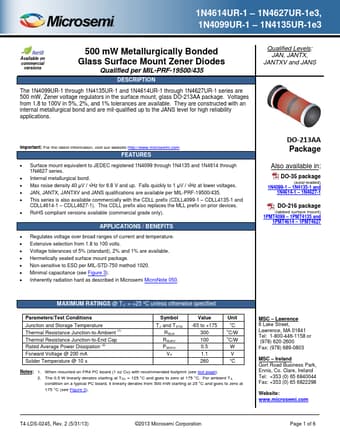

1N4614UR-1 – 1N4627UR-1e3, 1N4099UR-1 – 1N4135UR-1e3 Available on commercial versions 500 mW Metallurgically Bonded Glass Surface Mount Zener Diodes Qualified per MIL-PRF-19500/435 DESCRIPTION The 1N4099UR-1 through 1N4135UR-1 and 1N4614UR-1 through 1N4627UR-1 series are 500 mW, Zener voltage regulators in the surface mount, glass DO-213AA package. Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available. They are constructed with an internal metallurgical bond and are mil-qualified up to the JANS level for high reliability applications. Qualified Levels: JAN, JANTX, JANTXV and JANS Important: For the latest information, visit our website http://www.microsemi.com.
