3PMT120A, 3PMT150A - (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor

Microsemi

The 3PMT120A by Microsemi is a (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

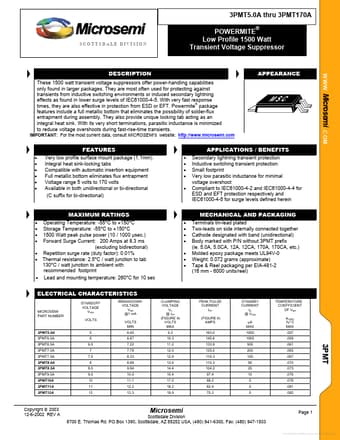

Official preview page of the 3PMT120A (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor datasheet (Microsemi).

Datasheet Details

Part number	3PMT120A, 3PMT150A
Manufacturer	Microsemi
File Size	471.97 KB
Description	(3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor
Datasheet	3PMT150A_Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 3PMT120A, 3PMT150A. Please refer to the document for exact specifications by model.
Additional preview pages of the 3PMT120A datasheet.

3PMT120A Product details

Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages.

Features

include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time transients.
