2N6990 Datasheet - Microsemi

2N6990 MULTIPLE (QUAD) NPN SILICON DUAL IN-LINE AND FLATPACK SWITCHING TRANSISTOR

TECHNICAL DATA MULTIPLE (QUAD) NPN SILICON DUAL IN-LINE AND FLATPACK SWITCHING TRANSISTOR Qualified per MIL-PRF-19500/559 Devices 2N6989 2N6989U 2N6990 Qualified Level JAN JANTX JANTXV JANS MAXIMUM RATINGS (1) Ratings Collector-Emitter Voltage (3) Collector-Base Voltage (3) Emitter-Base Voltage (3) Collector Current (3) Total Power Dissipation @ TA = +250C 2N6989(2) 2N6989U(2) 2N6990(2) Symbol VCEO VCBO VEBO IC PD Value 50 75 6.0 800 1.5 1.0 0.4 Operating & Storage Junction Temper.

2N6990 Datasheet (56.20 KB)

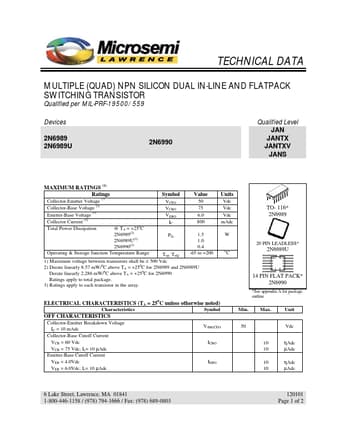

Preview of 2N6990 PDF
2N6990 Datasheet Preview Page 2

Datasheet Details

Part number:

2N6990

Manufacturer:

Microsemi ↗

File Size:

56.20 KB

Description:

Multiple (quad) npn silicon dual in-line and flatpack switching transistor.
