1N941-1 - 11.7 Volt Temperature Compensated Zener Reference Diodes

Microsemi

The 1N941-1 by Microsemi is a 11.7 Volt Temperature Compensated Zener Reference Diodes. Below is the official datasheet preview.

📥 Download Datasheet

1N941-1 11.7 Volt Temperature Compensated Zener Reference Diodes by Microsemi - Datasheet Preview — Official preview page of the **1N941-1** 11.7 Volt Temperature Compensated Zener Reference Diodes datasheet (Microsemi).

Datasheet Details

Part number	1N941-1
Manufacturer	Microsemi
File Size	195.19 KB
Description	11.7 Volt Temperature Compensated Zener Reference Diodes
Datasheet	1N941-1-Microsemi.pdf

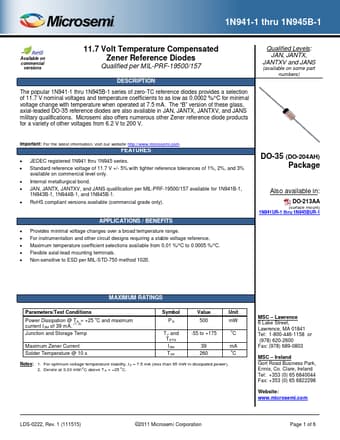

Additional preview pages of the 1N941-1 datasheet.

1N941-1 Product details

Description

The popular 1N941-1 thru 1N945B-1 series of zero-TC reference diodes provides a selection of 11.7 V nominal voltages and temperature coefficients to as low as 0.0002 %/oC for minimal voltage change with temperature when operated at 7.5 mA.

Features

JEDEC registered 1N941 thru 1N945 series.
Standard reference voltage of 11.7 V +/- 5% with tighter reference tolerances of 1%, 2%, and 3% available on.
