1N940A - 9.0 Volt Temperature Compensated Zener Reference Diodes

Download the 1N940A datasheet PDF. This datasheet also covers the 1N935 variant, as both devices belong to the same 9.0 volt temperature compensated zener reference diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The popular 1N935 thru 1N940B series of Zero-TC Reference Diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.0002%/oC for minimal voltage change with temperature when operated at 7.5 mA.

Features

  • JEDEC registered 1N935 thru 1N940 series.
  • Standard reference voltage of 9.0V +/- 5%.
  • 1N935B, 937B, 938B, 939B, 940B also have military q.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N935-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N940A TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Digitron Semiconductors
1N940 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Digitron Semiconductors
1N940B TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Digitron Semiconductors
1N941 11.7 VOLT NOMINAL ZENER VOLTAGE Compensated Deuices Incorporated
1N941 TEMPERATURE COMPENSATED ZENER DIODES Digitron Semiconductors

Other Datasheets by Microsemi (Microchip)

Part Number Description
1N940 9.0 Volt Temperature Compensated Zener Reference Diodes
1N940B 9.0 Volt Temperature Compensated Zener Reference Diodes
1N941 11.7 Volt Temperature Compensated Zener Reference Diodes
1N941-1 11.7 Volt Temperature Compensated Zener Reference Diodes
1N941A 11.7 Volt Temperature Compensated Zener Reference Diodes

Full PDF Text Transcription

Click to expand full text

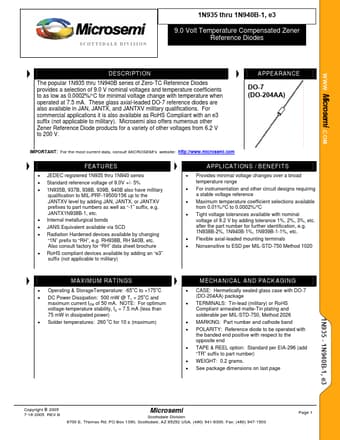

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N935 thru 1N940B-1, e3 9.0 Volt Temperature Compensated Zener Reference Diodes DESCRIPTION The popular 1N935 thru 1N940B series of Zero-TC Reference Diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.0002%/oC for minimal voltage change with temperature when operated at 7.5 mA. These glass axial-leaded DO-7 reference diodes are also available in JAN, JANTX, and JANTXV military qualifications. For commercial applications it is also available as RoHS Compliant with an e3 suffix (not applicable to military). Microsemi also offers numerous other Zener Reference Diode products for a variety of other voltages from 6.2 V to 200 V.
