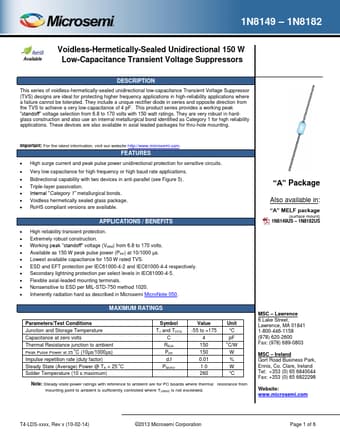

1N8149 Datasheet (Microsemi) - Low-Capacitance Transient Voltage Suppressors

1N8149, Low-Capacitance Transient Voltage Suppressors

This series of voidless-hermetically-sealed unidirectional low-capacitance Transient Voltage Suppressor (TVS) designs are ideal for protecting higher frequency applications in high-reliability applications where a failure cannot be tolerated.

They include a unique rectifier diode in series and oppos

1N8149 Features

* High surge current and peak pulse power unidirectional protection for sensitive circuits.

* Very low capacitance for high frequency or high baud rate applications.

* Bidirectional capability with two devices in anti-parallel (see Figure 5).

* Triple-layer passivation.

* Interna
