1N6464US, 1N6461US - (1N6461US - 1N6468US) Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors

Microsemi

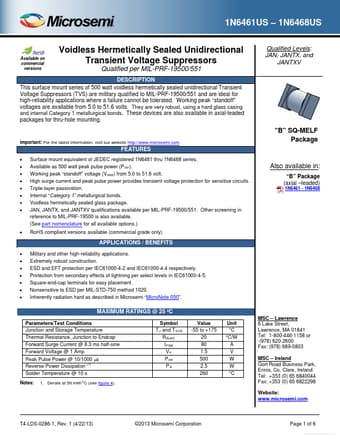

1N6464US Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N6464US, 1N6461US. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1N6464US, 1N6461US
Manufacturer	Microsemi ↗
File Size	578.08 KB
Description	(1N6461US - 1N6468US) Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
Datasheet	1N6461US_Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6464US, 1N6461US. Please refer to the document for exact specifications by model.

1N6464US Product details

Description

This surface mount series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors (TVS) are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated.

Features

Surface mount equivalent of JEDEC registered 1N6461 thru 1N6468 series. Available as 500 watt peak pulse power (P PP ). Working peak “standoff” voltage (V WM ) from 5.0 to 51.6 volt. High surge current and peak pulse power provides transient voltage protection for sensitive circuits. Triple-layer passivation. Internal “Category 1” metallurgical bonds. Voidless hermetically sealed glass package. JAN, JANTX, and JANTXV.
