1N6370, 1N6358 - 1500 Watt Low Clamping Factor Transient Voltage Suppressor

Microsemi

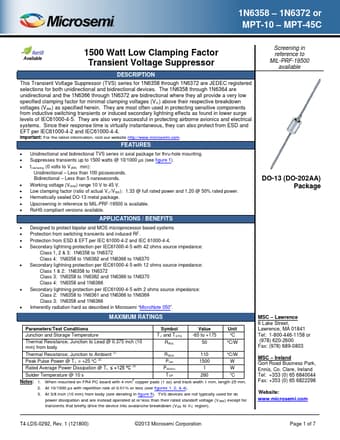

1N6370 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N6370, 1N6358. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1N6370, 1N6358
Manufacturer	Microsemi ↗
File Size	564.23 KB
Description	1500 Watt Low Clamping Factor Transient Voltage Suppressor
Datasheet	1N6358-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6370, 1N6358. Please refer to the document for exact specifications by model.

1N6370 Product details

Description

This Transient Voltage Suppressor (TVS) series for 1N6358 through 1N6372 are JEDEC registered selections for both unidirectional and bidirectional devices.

Features

Screening in reference to MIL-PRF-19500 available.
Unidirectional and bidirectional TVS series in axial package for thru-hole mounting.
Suppresses transients up to 1500 watts @ 10/1000 µs (see figure 1).
tclamping (0 volts to V(BR) min): Unidirectional.
Less than 100 picoseconds. Bidirectional.
Less than 5 nanoseconds.
Working voltage (VWM) range 10 V to 45 V.
Low clamping factor (ratio of actual VC/VBR): 1.33 @ full rated powe.
