1N6330D

The 1N6330D is 500mW GLASS ZENER DIODES designed by Microsemi.

Product Overview

Microsemi

📥 Download Datasheet

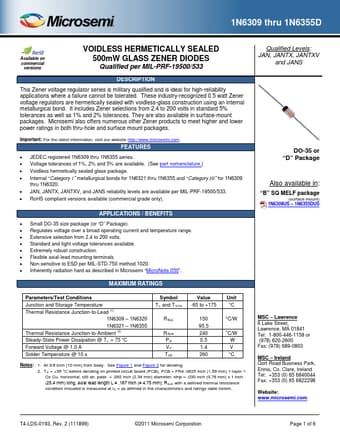

1N6330D 500mW GLASS ZENER DIODES by Microsemi - Datasheet Preview — Datasheet preview – 1N6330D

Datasheet Details

Part number	1N6330D, 1N6309
Manufacturer	Microsemi
File Size	232.37 KB
Description	500mW GLASS ZENER DIODES
Datasheet	1N6309-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6330D, 1N6309. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N6330D datasheet.

Product details

Description

This Zener voltage regulator series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated.

Features

JEDEC registered 1N6309 thru 1N6355 series.
Voltage tolerances of 1%, 2% and 5% are available. (See part nomenclature. ).
Voidless hermetically seal.
