1N6309 500mW GLASS ZENER DIODES

1N6309 Description

1N6309 thru 1N6355D Available on commercial versions VOIDLESS HERMETICALLY SEALED 500mW GLASS ZENER DIODES Qualified per MIL-PRF-19500/533 DESCRIPT.
This Zener voltage regulator series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated.

1N6309 Features

* JEDEC registered 1N6309 thru 1N6355 series.
* Voltage tolerances of 1%, 2% and 5% are available. (See part nomenclature. )
* Voidless hermetically seal

1N6309 Applications

* where a failure cannot be tolerated. These industry-recognized 0.5 watt Zener voltage regulators are hermetically sealed with voidless-glass construction using an internal metallurgical bond. It includes Zener selections from 2.4 to 200 volts in standard 5% tolerances as well as 1% and 2% tolerances

📥 Download Datasheet

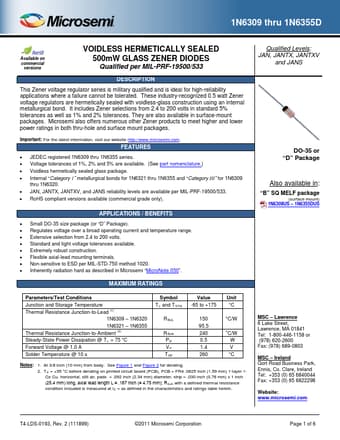

Preview of 1N6309 PDF
