1N5612 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors

Download the 1N5612 datasheet PDF. This datasheet also covers the 1N5610 variant, as both devices belong to the same voidless hermetically sealed unidirectional transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Description

This series of industry recognized voidless hermetically sealed unidirectional Transient Voltage Suppressor (TVS) designs is military qualified and are ideal for high-reliability applications where a failure cannot be tolerated.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5610-Microsemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5612
Manufacturer Microsemi (Microchip)
File Size 204.59 KB
Description Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
Datasheet download datasheet 1N5612 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5612 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR EIC
1N5610 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR EIC
1N5611 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR EIC
1N5613 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR EIC
1N5614 STANDARD RECOVERY RECTIFIERS Digitron Semiconductors

Other Datasheets by Microsemi (Microchip)

Part Number Description
1N5610 Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
1N5611 Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
1N5613 Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors
1N5614 STANDARD RECOVERY GLASS RECTIFIERS
1N5614US (1N5614US - 1N5622US) VOIDLESS-HERMETICALLY-SEALED SURFACE MOUNT STANDARD RECOVERY GLASS RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

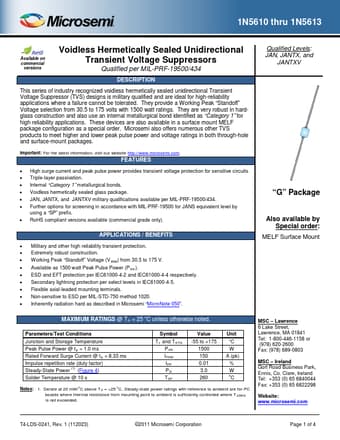

1N5610 thru 1N5613 Available on commercial versions Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors Qualified per MIL-PRF-19500/434 DESCRIPTION This series of industry recognized voidless hermetically sealed unidirectional Transient Voltage Suppressor (TVS) designs is military qualified and are ideal for high-reliability applications where a failure cannot be tolerated. They provide a Working Peak “Standoff” Voltage selection from 30.5 to 175 volts with 1500 watt ratings. They are very robust in hardglass construction and also use an internal metallurgical bond identified as “Category 1” for high reliability applications. These devices are also available in a surface mount MELF package configuration as a special order.
