1N5528B - 500mW Zener Diodes

Download the 1N5528B datasheet PDF (1N5518B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 500mw zener diodes.

Description

The 1N5518 thru 1N5546 series of 0.5 watt axial-leaded glass Zener Voltage Regulators provides a selection from 3.3 to 33 volts with tolerances ranging from plus/minus 1% to 20%.

The standard tolerance is plus/minus 5% with the B suffix unless ordered otherwise.

Features

  • JEDEC registered 1N5518 thru 1N5546.
  • Voltage tolerances of plus/minus 20%, 10%, 5%, 2%, and 1% available. See Note 1 on page 3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5518B-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 1N5528B - LOW REVERSE LEAKAGE CHARACTERISTICS (Compensated Deuices Incorporated)
  • 1N5528B - SILICON ZENER DIODES (Central Semiconductor)
  • 1N5528B-1 - LOW REVERSE LEAKAGE CHARACTERISTICS (Compensated Deuices Incorporated)
  • 1N5528B-1 - Low Noise Zener Diode (Aeroflex)
  • 1N5528B-1 - Low Noise Zener Diode (VPT)
  • 1N5528BUR-1 - 500mW Zener Diode (VPT)
  • 1N5528 - LOW VOLTAGE AVALANCHE ZENER DIODES HIGH PERFORMANCE: LOW NOISE/ LOW LEAKAGE (Knox Semiconductor Inc)
  • 1N5528 - 0.4W Low Voltage Avalanche Diodes (JGD)
  • 1N5528 - Low Noise Zener Diode (MA-COM)
  • 1N5528A - (1N5518A - 1N5546A) ZENER DIODES (New Jersey Semi-Conductor)
Other Datasheets by Microsemi

Full PDF Text Transcription

Click to expand full text

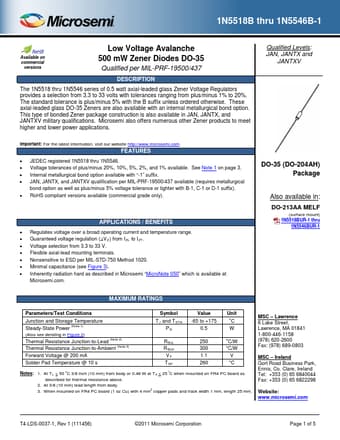

1N5518B thru 1N5546B-1 Available on commercial versions Low Voltage Avalanche 500 mW Zener Diodes DO-35 Qualified per MIL-PRF-19500/437 DESCRIPTION The 1N5518 thru 1N5546 series of 0.5 watt axial-leaded glass Zener Voltage Regulators provides a selection from 3.3 to 33 volts with tolerances ranging from plus/minus 1% to 20%. The standard tolerance is plus/minus 5% with the B suffix unless ordered otherwise. These axial-leaded glass DO-35 Zeners are also available with an internal metallurgical bond option. This type of bonded Zener package construction is also available in JAN, JANTX, and JANTXV military qualifications. Microsemi also offers numerous other Zener products to meet higher and lower power applications.
