1N4737AUR-1 - METALLURGICALLY BONDED GLASS SURFACE MOUNT 1.0W ZENERS

Download the 1N4737AUR-1 datasheet PDF. This datasheet also covers the 1N4728AUR-1 variant, as both devices belong to the same metallurgically bonded glass surface mount 1.0w zeners family and are provided as variant models within a single manufacturer datasheet.

Description

This surface mountable 1 watt Zener diode series is electrically equivalent to the 1N4728A thru 1N4764A registration in the DO-41 equivalent package except that it meets the JEDEC surface mount outline DO-213AB and also includes enhanced internal contact design.

Features

  • Electrically similar to the JEDEC registered 1N4728 thru 1N4764 zener series.
  • Zener voltages ava.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4728AUR-1-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N4737A Zener Diode Formosa MS
1N4737A Zener Diodes ON Semiconductor
1N4737A 1W Zener Diodes TAITRON
1N4737A Zener Diodes Vishay
1N4737A SILICON ZENER DIODES Central Semiconductor

Other Datasheets by Microsemi (Microchip)

Part Number Description
1N4737AUR SURFACE MOUNT 1.0W GLASS ZENER DIODES
1N4737AUR SURFACE MOUNT 1.0W GLASS ZENER DIODES
1N4737AG Silicon 1 Watt Zener Diodes
1N4730AG Silicon 1 Watt Zener Diodes
1N4730AUR SURFACE MOUNT 1.0W GLASS ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

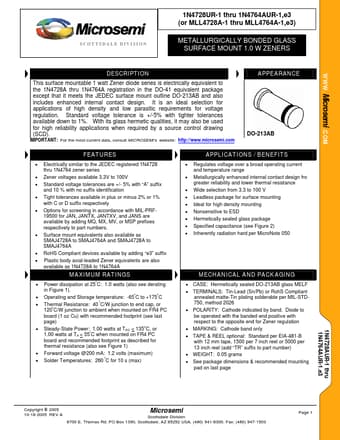

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N4728UR-1 thru 1N4764AUR-1,e3 (or MLL4728A-1 thru MLL4764A-1,e3) METALLURGICALLY BONDED GLASS SURFACE MOUNT 1.0 W ZENERS DESCRIPTION This surface mountable 1 watt Zener diode series is electrically equivalent to the 1N4728A thru 1N4764A registration in the DO-41 equivalent package except that it meets the JEDEC surface mount outline DO-213AB and also includes enhanced internal contact design. It is an ideal selection for applications of high density and low parasitic requirements for voltage regulation. Standard voltage tolerance is +/-5% with tighter tolerances available down to 1%. With its glass hermetic qualities, it may also be used for high reliability applications when required by a source control drawing (SCD).
