1N4067 - High Voltage Temperature Compensated Zener Reference Diodes

Download the 1N4067 datasheet PDF. This datasheet also covers the 1N4057 variant, as both devices belong to the same high voltage temperature compensated zener reference diodes family and are provided as variant models within a single manufacturer datasheet.

Description

The 1N4057 thru 1N4085A series of Zero-TC Reference Diodes provides a wide selection of nominal voltages ranging from 12.4 V to 200 V with low temperature coefficients of either 0.005%/C or 0.002%/oC for minimal voltage change with temperature.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4057-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N4067 12.4 THRU 200 VOLT NOMINAL ZENER VOLTAGES + 5% Compensated Deuices Incorporated
1N4067A 12.4 THRU 200 VOLT NOMINAL ZENER VOLTAGES + 5% Compensated Deuices Incorporated
1N4060 12.4 THRU 200 VOLT NOMINAL ZENER VOLTAGES + 5% Compensated Deuices Incorporated
1N4060A 12.4 THRU 200 VOLT NOMINAL ZENER VOLTAGES + 5% Compensated Deuices Incorporated
1N4061 12.4 THRU 200 VOLT NOMINAL ZENER VOLTAGES + 5% Compensated Deuices Incorporated

Other Datasheets by Microsemi (Microchip)

Part Number Description
1N4067A High Voltage Temperature Compensated Zener Reference Diodes
1N4060 High Voltage Temperature Compensated Zener Reference Diodes
1N4060A High Voltage Temperature Compensated Zener Reference Diodes
1N4061 High Voltage Temperature Compensated Zener Reference Diodes
1N4061A High Voltage Temperature Compensated Zener Reference Diodes

Full PDF Text Transcription

Click to expand full text

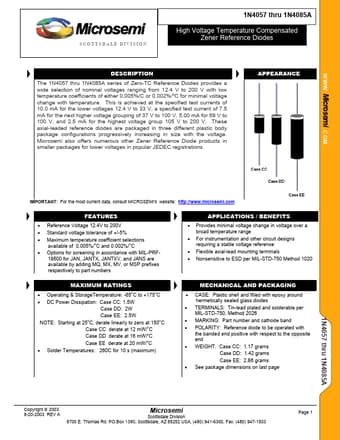

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N4057 thru 1N4085A High Voltage Temperature Compensated Zener Reference Diodes DESCRIPTION The 1N4057 thru 1N4085A series of Zero-TC Reference Diodes provides a wide selection of nominal voltages ranging from 12.4 V to 200 V with low temperature coefficients of either 0.005%/C or 0.002%/oC for minimal voltage change with temperature. This is achieved at the specified test currents of 10.0 mA for the lower voltages 12.4 V to 33 V, a specified test current of 7.5 mA for the next higher voltage grouping of 37 V to 100 V, 5.00 mA for 68 V to 100 V, and 2.5 mA for the highest voltage group 105 V to 200 V.
