1N3031B - 1 WATT METAL CASE ZENER DIODES

Download the 1N3031B datasheet PDF. This datasheet also covers the 1N3016B variant, as both devices belong to the same 1 watt metal case zener diodes family and are provided as variant models within a single manufacturer datasheet.

Description

This well established zener diode series for the 1N3016 thru 1N3051 JEDEC registration in the metal case DO-13 package provides a glass hermetic seal for 6.8 to 200 volts.

Features

  • Zener Voltage Range: 6.8V to 200V.
  • Hermetically sealed DO-13 metal package.
  • Internally solder-bonded construction.
  • Also available in JAN, JANTX, JANTXV qualifications per MIL-PRF19500/115 by adding the JA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N3016B-Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N3031B 1 WATT ZENER DIODES Compensated Deuices Incorporated
1N3031B DIODE DSI
1N3031B-M DIODE DSI
1N3031 1.0 WATT METAL SILICON ZENER DIODES Motorola
1N3030 1.0 WATT METAL SILICON ZENER DIODES Motorola

Other Datasheets by Microsemi (Microchip)

Part Number Description
1N3031B-1 (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes
1N3031BUR-1 Surface Mount 1.5W GLASS ZENER DIODES
1N3030B 1 WATT METAL CASE ZENER DIODES
1N3030B-1 (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes
1N3030BUR-1 Surface Mount 1.5W GLASS ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

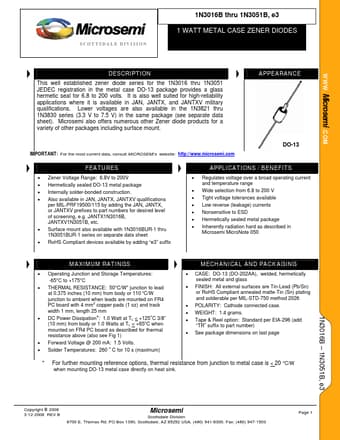

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N3016B thru 1N3051B, e3 1 WATT METAL CASE ZENER DIODES DESCRIPTION This well established zener diode series for the 1N3016 thru 1N3051 JEDEC registration in the metal case DO-13 package provides a glass hermetic seal for 6.8 to 200 volts. It is also well suited for high-reliability applications where it is available in JAN, JANTX, and JANTXV military qualifications. Lower voltages are also available in the 1N3821 thru 1N3830 series (3.3 V to 7.5 V) in the same package (see separate data sheet). Microsemi also offers numerous other Zener diode products for a variety of other packages including surface mount. APPEARANCE IMPORTANT: For the most current data, consult MICROSEMI’s website: http://www.microsemi.
