1N3019B-1, 1N3016B-1 - (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes

Microsemi

The 1N3019B-1 by Microsemi is a (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes. Below is the official datasheet preview.

📥 Download Datasheet

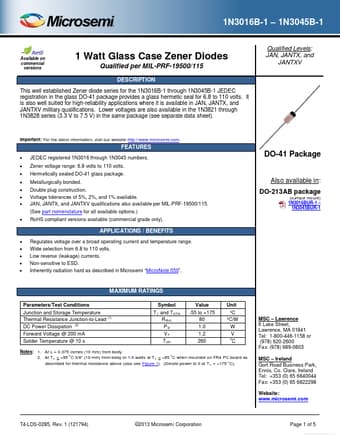

1N3019B-1 (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes by Microsemi - Datasheet Preview — Official preview page of the **1N3019B-1** (1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes datasheet (Microsemi).

Datasheet Details

Part number	1N3019B-1, 1N3016B-1
Manufacturer	Microsemi
File Size	359.71 KB
Description	(1N3016B-1 - 1N3045B-1) 1 Watt Glass Case Zener Diodes
Datasheet	1N3016B-1_Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N3019B-1, 1N3016B-1. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N3019B-1 datasheet.

1N3019B-1 Product details

Description

This well established Zener diode series for the 1N3016B-1 through 1N3045B-1 JEDEC registration in the glass DO-41 package provides a glass hermetic seal for 6.8 to 110 volts.

Features

JEDEC registered 1N3016 through 1N3045 numbers. Zener voltage range: 6.8 volts to 110 volts. Hermetically sealed DO-41 glass package. Metallurgically bonded. Double plug construction. Voltage tolerances of 5%, 2%, and 1% available. JAN, JANTX, and JANTXV qualifications also available per MIL-PRF-19500/115. (See part nomenclature for all available options. ) RoHS compliant versions available (commercial grade only). D.
