LXZ1000 - SURFACE MOUNT SOT-23 Zero Bias (ZBD) Schottky Diodes

Description

Mil spec quality Schottky barrier devices are available in economical SOT23 plastic packages.

Priced for high volume commercial applications, these devices provide state-of-the-art electrical performance, ideal for use as detectors, mixers, in up/down converters or in sampling phase detectors.

Features

  • Standard SOT23 Package Outline.
  • Surface Mount design.
  • Wide Selecting of Values and Configurations.
  • Available on Tape & Reel for Automated Pick & Place Assembly.
  • Excellent Conversion Loss.
  • RoHS Compliant 1 www.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LXZT LEADED LOW FREQUENCY kHz BAND CERAMIC RESONATORS Abracon Corporation

Other Datasheets by Microsemi (Microchip)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

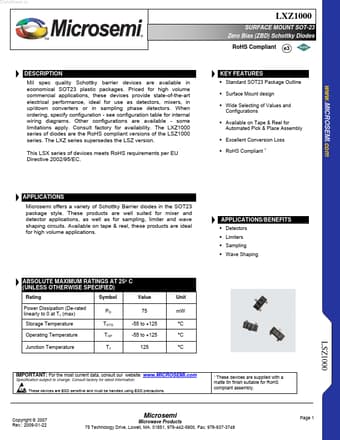

DataSheet.in LXZ1000 TM ® SURFACE MOUNT SOT-23 Zero Bias (ZBD) Schottky Diodes RoHS Compliant DESCRIPTION Mil spec quality Schottky barrier devices are available in economical SOT23 plastic packages. Priced for high volume commercial applications, these devices provide state-of-the-art electrical performance, ideal for use as detectors, mixers, in up/down converters or in sampling phase detectors. When ordering, specify configuration - see configuration table for internal wiring diagrams. Other configurations are available - some limitations apply. Consult factory for availability. The LXZ1000 series of diodes are the RoHS compliant versions of the LSZ1000 series. The LXZ series supersedes the LSZ version. This LSX series of devices meets RoHS requirements per EU Directive 2002/95/EC.
