LXM1614-14-11 Datasheet - Microsemi Corporation

LXM1614-14-11 DUAL DIMMING/ EXTENDED TEMPEERATURE CCFL INVERTER MODULE

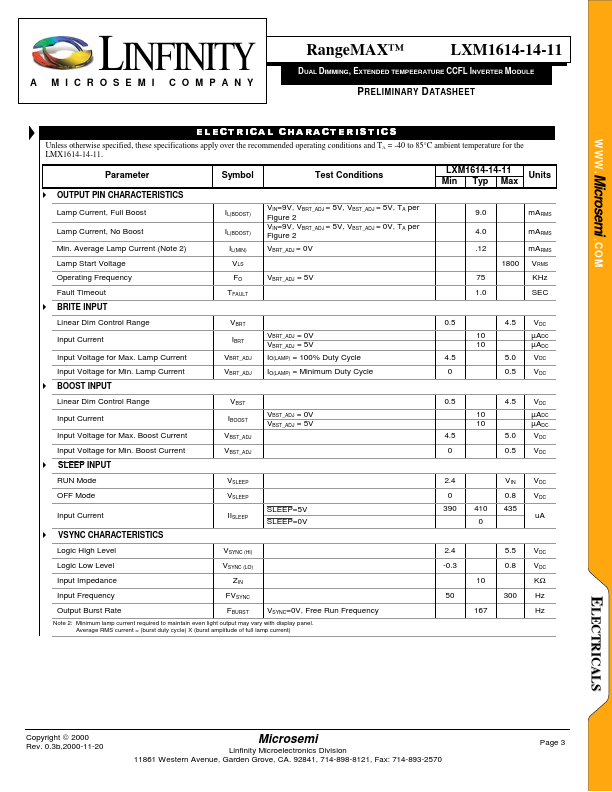

CN1 (Molex 53261-0890) * CN1-1,2 VIN Main Input P.

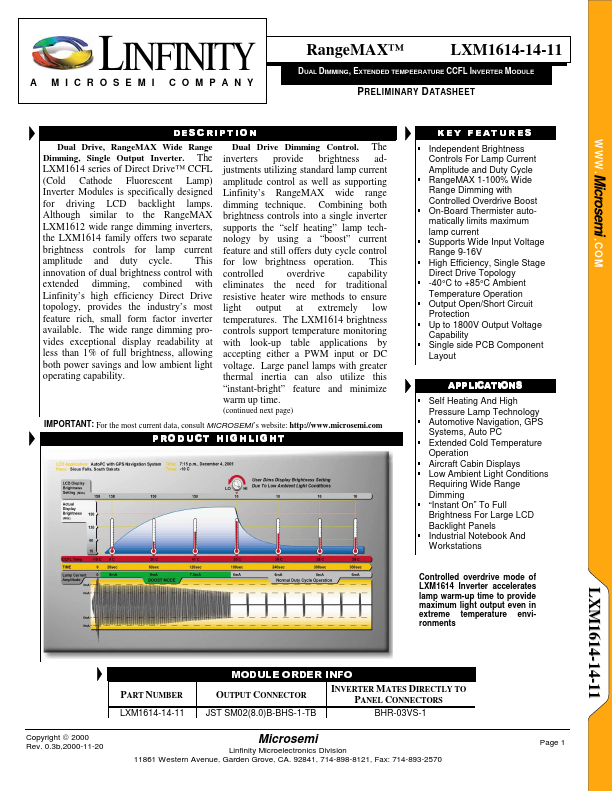

A M I C R O S E M I C O M P A N Y RangeMAX™ LXM1614-14-11 DUAL DIMMING, EXTENDED TEMPEERATURE CCFL INVERTER MODULE P RELIMINARY D ATASHEET Dual Drive, RangeMAX Wide Range Dimming, Single Output Inverter. The Independent Brightness W W W . Microsemi . COM LXM1614 series of Direct Drive™ CCFL (Cold Cathode Fluorescent Lamp) Inverter Modules is specifically designed for driving LCD backlight lamps. Although similar to the RangeMAX LXM1612 wide range.

LXM1614-14-11 Features

* Other benefits of this new topology are fixed-frequency operation and secondary-side strike-voltage regulation. Strike-voltage regulation minimizes corona discharge in the output transformer and related circuitry, providing longer life and higher reliability. All LXM1614 modules feature both open

LXM1614-14-11 Datasheet (323.12 KB)

LXM1614-14-11 Datasheet Preview — Preview of LXM1614-14-11 PDF

Datasheet Details

Part number:

LXM1614-14-11

Manufacturer:

Microsemi ↗ Corporation

File Size:

323.12 KB

Description:

Dual dimming/ extended tempeerature ccfl inverter module.
