LX2201 - USB Li-Ion Battery Charger

Name: LX2201
SKU: LX2201-669606

Microsemi Corporation

📥 Download Datasheet

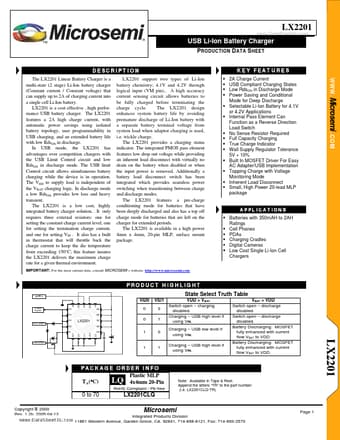

LX2201 Datasheet Preview — Preview of LX2201 PDF

Datasheet Details

Part number	LX2201
Manufacturer	Microsemi Corporation
File Size	199.90 KB
Description	USB Li-Ion Battery Charger
Datasheet	LX2201_MicrosemiCorporation.pdf

LX2201 Product details

Description

The LX2201 Linear Battery Charger is a multi-state (2 stage) Li-Ion battery charger (Constant current / Constant voltage) that can supply up to 2A of charging current into a single cell Li-Ion battery.

Features

a 2A high charge current, with automatic power savings using isolated battery topology, user programmability in USB charging, and an extended battery life with low RdsON in discharge. In USB mode, the LX2201 has advantages over competition chargers with the USB Limit Control circuit and low RdsON in discharge mode. The USB limit Control circuit allows simultaneous battery charging while the device is in operation. The VDD to supply load is independent of the VBAT charging logic. In discharge mod.
