LX1676 - Mobile AMD Athlon VRM Controller

Description

KEY

Features

  • High Current Biphase Operation.
  • Outputs As Low As 0.925V.
  • † Biphase LoadSHARETM.
  • † Transient Correction Loop Reduces Required Capacitance.
  • Differential Amplifier For Remote Voltage Sensing.
  • Integrated High Current MOSFET Drivers.
  • 200KHz to 1MHz Frequency Operation.
  • Programmable Slew Rate Control For Start-Up Sequence and VID change.
  • VID Changes On The Fly.
  • Power Good Indicator.
  • Short Circuit Protection.
  • Output Over Voltage and Under Vo.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LX10M Lux-Bridge ZOWIE
LX1214E500X NPN microwave power transistor NXP
LX121XS-LE01 TFT LCD ETC
LX128B High Performance Interfacing and Switching Lattice Semiconductor
LX128B-32F208C High Performance Interfacing and Switching Lattice Semiconductor

Other Datasheets by Microsemi (Microchip)

Part Number Description
LX1670 5 - BIT PROGRAMMABLE VOTAGE REFERENCE
LX1671 Multiple Output LoadSHARE PWM
LX1672 Multiple Output LoadSHARE PWM
LX1673 High Frequency PWM Regulator
LX1675 Multiple Output LoadSHARE PWM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

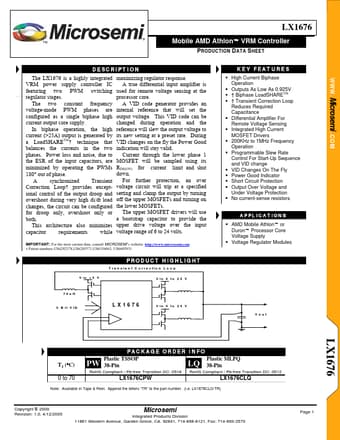

LX1676 TM ® Mobile AMD Athlon™ VRM Controller P RODUCTION D ATA S HEET DESCRIPTION KEY FEATURES ƒ High Current Biphase Operation ƒ Outputs As Low As 0.925V ƒ † Biphase LoadSHARETM ƒ † Transient Correction Loop Reduces Required Capacitance ƒ Differential Amplifier For Remote Voltage Sensing ƒ Integrated High Current MOSFET Drivers ƒ 200KHz to 1MHz Frequency Operation ƒ Programmable Slew Rate Control For Start-Up Sequence and VID change ƒ VID Changes On The Fly ƒ Power Good Indicator ƒ Short Circuit Protection ƒ Output Over Voltage and Under Voltage Protection ƒ No current-sense resistors APPLICATIONS The LX1676 is a highly integrated VRM power supply controller IC featuring two PWM switching www.DataSheet4U.net regulator stages.
