LX1671 - Multiple Output LoadSHARE PWM

Name: LX1671
SKU: LX1671-702414

Microsemi Corporation

The LX1671 by Microsemi Corporation is a Multiple Output LoadSHARE PWM. Below is the official datasheet preview.

Datasheet Details

Part number	LX1671
Manufacturer	Microsemi Corporation
File Size	465.13 KB
Description	Multiple Output LoadSHARE PWM
Datasheet	LX1671_MicrosemiCorporation.pdf

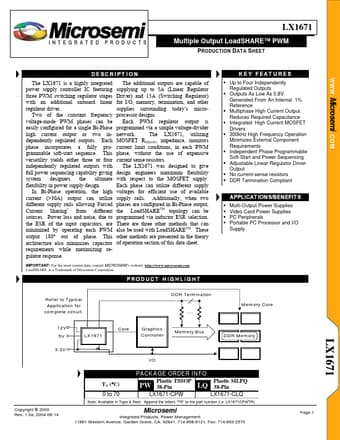

Additional preview pages of the LX1671 datasheet.

KEY

WWW . Microsemi . C OM The LX1671 is a highly integrated power supply controller IC featuring www. DataSheet4U. net three PWM switching regulator stages with an additional onboard linear regulator driver. Two of the constant frequency voltage-mode PWM phases can be easily configured for a single Bi-Phase high current output or two independently regulated outputs. Each phase incorporates a fully programmable soft-start sequence. This versatility yields either three or four independently regulated.
