CDLL825A - TEMPERATURE COMPENSATED ZENER DIODES

Download the CDLL825A datasheet PDF. This datasheet also covers the CDLL821 variant, as both devices belong to the same temperature compensated zener diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDLL821_MicrosemiCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CDLL825A TEMPERATURE COMPENSATED ZENER DIODES Compensated Deuices Incorporated
CDLL825 TEMPERATURE COMPENSATED ZENER DIODES Compensated Deuices Incorporated
CDLL825 TEMPERATURE COMPENSATED ZENER DIODES Compensated Deuices Incorporated
CDLL821 TEMPERATURE COMPENSATED ZENER DIODES Compensated Deuices Incorporated
CDLL821A TEMPERATURE COMPENSATED ZENER DIODES Compensated Deuices Incorporated

Other Datasheets by Microsemi (Microchip)

Part Number Description
CDLL825 TEMPERATURE COMPENSATED ZENER DIODES
CDLL821 TEMPERATURE COMPENSATED ZENER DIODES
CDLL821A TEMPERATURE COMPENSATED ZENER DIODES
CDLL822 TEMPERATURE COMPENSATED ZENER DIODES
CDLL823 TEMPERATURE COMPENSATED ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

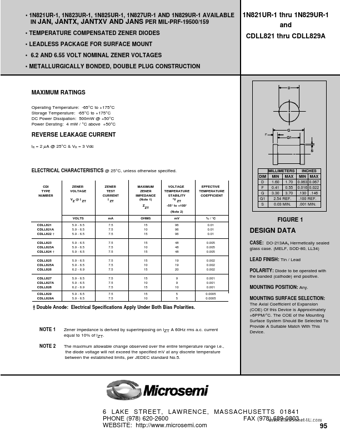

• 1N821UR-1, 1N823UR-1, 1N825UR-1, 1N827UR-1 AND 1N829UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/159 • TEMPERATURE COMPENSATED ZENER DIODES • LEADLESS PACKAGE FOR SURFACE MOUNT • 6.2 AND 6.55 VOLT NOMINAL ZENER VOLTAGES • METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N821UR-1 thru 1N829UR-1 and CDLL821 thru CDLL829A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 2 µA @ 25°C & VR = 3 Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
