Trench + Field Stop IGBT3 Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - RBSOA and SCSOA rated.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

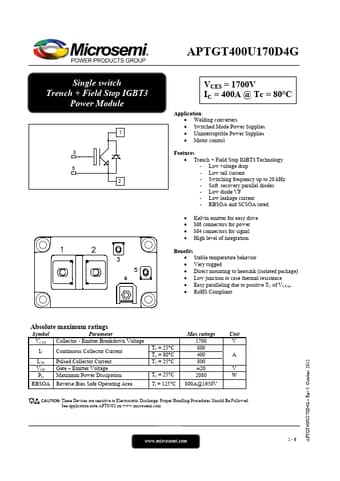

Single switch Trench + Field Stop IGBT3
Power Module
1
3 5
2
APTGT400U170D4G
VCES = 1700V IC = 400A @ Tc = 80°C
Application Welding converters Switched Mode Power Supplies Uninterruptible Power Supplies Motor control
Features Trench + Field Stop IGBT3 Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - RBSOA and SCSOA rated
Kelvin emitter for easy drive M6 connectors for power M4 connectors for signal High level of integration
Benefits Stable temperature behavior Very rugged Direct mounting to heatsink (isolated package) Low junction to case thermal resistance Easy paralleling due to positive TC of VCEsat RoHS Compliant
APTGT400U170D4G – Rev 3 October 2012
APTGT400U170D4G Datasheet
