APT200GT60JRDL - Resonant Mode Combi IGBT

Key Features

  • Low Forward Voltage Drop.
  • Low Tail Current.
  • Integrated Gate Resistor Low EMI, High Reliability.
  • Low forward Diode Voltage (VF).
  • RoHS Compliant.
  • Ultra soft recovery diode.
  • RBSOA and SCSOA Rated.
  • High Frequency Switching to 50KHz.
  • Ultra Low Leakage Current Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
APT200GN60J Intergrated Gate Resistor: Low EMI High Reliability Advanced Power Technology
APT200GN60JDQ4 IGBT Advanced Power Technology
APT2012EC SMD Chip LED Lamp Kingbright
APT2012F3C Infrared Emitting Diode Kingbright
APT2012MGC Straight 1-Row BergStik II Headers Kingbright Corporation

Other Datasheets by Microsemi (Microchip)

Part Number Description
APT200GT60JRDQ4 Thunderbolt IGBT
APT200GT60JR Thunderbolt IGBT
APT200GN60B2G Field Stop IGBT
APT20GN60B Thunderbolt High Speed NPT IGBT
APT20GN60BDQ1 High Speed PT IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

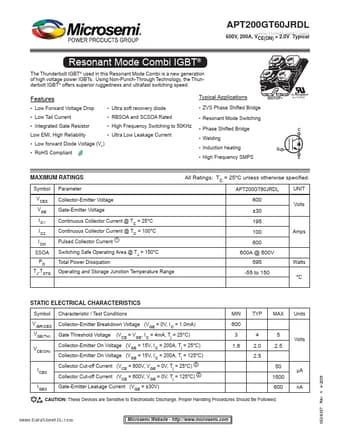

TYPICAL PERFORMANCE CURVES APT200GT60JRDL 600V, 200A, VCE(ON) = 2.0V Typical www.DataSheet4U.com APT200GT60JRDL Resonant Mode Combi IGBT® The Thunderbolt IGBT® used in this Resonant Mode Combi is a new generation of high voltage power IGBTs. Using Non-Punch-Through Technology, the Thunderbolt IGBT® offers superior ruggedness and ultrafast switching speed.
