APT100GT120JRDQ4 - Thunderbolt IGBT

Features

  • Low Forward Voltage Drop.
  • Low Tail Current.
  • Integrated Gate Resistor Low EMI, High Reliability.
  • RoHS Compliant Unless stated otherwise, Microsemi discrete IGBTs contain a single IGBT die. This device is made with two parallel IGBT die. It is intended for switch-mode operation. It is not suitable for linear mode operation. 27 -2 T SO "UL Recognized" file # E145592.
  • RBSOA and SCSOA Rated.
  • High Frequency Switching to 50KHz.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
APT100GT60JR Thunderbolt IGBT Advanced Power Technology
APT100GF60B2R The Fast IGBT is a new generation of high voltage power IGBTs. Advanced Power Technology
APT100GF60JR The Fast IGBT is a new generation of high voltage power IGBTs. Advanced Power Technology
APT100GF60JRD The Fast IGBT is a new generation of high voltage power IGBTs. Advanced Power Technology
APT100GF60LR The Fast IGBT is a new generation of high voltage power IGBTs. Advanced Power Technology

Other Datasheets by Microsemi (Microchip)

Part Number Description
APT100GT120JRDL Resonant Mode IGBT
APT100GT120JR Thunderbolt IGBT
APT100GT120JU2 ISOTOP Boost chopper Trench Field Stop IGBT
APT100GT120JU3 ISOTOP Buck chopper Trench IGBT
APT100GT60B2R Thunderbolt IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

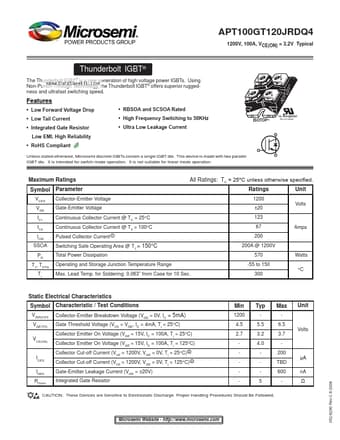

APT100GT120JRDQ4 1200V, 100A, VCE(ON) = 3.2V Typical Thunderbolt IGBT® The Thunderbolt IGBT® is a new generation of high voltage power IGBTs. Using Non-Punch-Through Technology, the Thunderbolt IGBT® offers superior ruggedness and ultrafast switching speed. E G C E Features • Low Forward Voltage Drop • Low Tail Current • Integrated Gate Resistor Low EMI, High Reliability • RoHS Compliant Unless stated otherwise, Microsemi discrete IGBTs contain a single IGBT die. This device is made with two parallel IGBT die. It is intended for switch-mode operation. It is not suitable for linear mode operation.
